1. MCB + TERMINAL BOX
* Arranged on the right side by default to take out load lines
* Possible to choose the sides, either left or right, based on the direction
* Designed for easy handling, maintenance, and repairs
6. ALTERNATOR
Alternator was designed to be simple and robust. Components are easily accessed for the routine maintenance, repair, and replacement.
The heavy-duty alternator complies with NEMA, IEE, and ANSI Standard for temperature rise.
* Specifications are subject to change without prior notice
for improving product quality.
* Model: H - HYUNDAI / D - DOOSAN Infracore (DAEWOO) /
B - BAUDOUIN / F - FPT (ITALY) Engine
* Specifications are subject to change without prior notice for
improving product quality.
* MODEL : C - CUMMINS / M - MTU / P - PERKINS /
T - CATERPILLAR / S - SCANIA Engine
* Specifications are subject to change without prior notice for improving
performance of products.
* Possible to add quantity of gen-sets based on a capacity.
* Low pressure : 1.5 ~ 5 psi (0.1 ~ 3.5kg/m3)
* High pressure : 20 ~ 40 psi (1.4 ~ 2.8 kgm3)
* Specifications are subject to change without prior notice
for improving performance of products.
* FUEL CONSUMPTION RATE :
Load (GAS / DIESEL) 15% (10:90), 30% (50:50), 50~100% (70:30)
* Specifications are subject to change without prior notice
for improving performance of products.
* Usage
- For cost reduction from using the gas as a fuel by installing additional
device to the existing generator
- Prefer to use both diesel and gas as fuel simultaneously
- Prefer to use the produced gas only, and continue to use diesel
for the rest
- Prefer to use gas produced from livestock wastewater, food waste,
landfill, and etc., by using the eco-friendly device, and then use diesel
for the rest
* Checklist prior to Selection
- Check whether it is possible to use bi-fuel for the existing
generator engine
- Confirm the gas supply lines
- Remove detrimental elements for engines, after analyzing gas
components (moistures / desulfurization, and etc.)
* Frequency : 50 / 60 Hz.
* Voltage : V (Single or 3 phase)
* Check the operation load
1. Normal Load (Motors, pumps, compressors, and etc.) :
Check the largest load capacity
2. Select the capacity with the extra 30 to 40% to the power
consumption
3. Select either #1 or 2 from the above : Fuel consumption will
be based on the power usage
* Capacity Unit : kVA or kW
- 100kVA X 0.8 = 80 kW
- 80kW ÷ 0.8 = 100 kVA
* Check wheher there is a generator room (for purchasing
the installation materials)
*Operating Conditions (A separate inquiry required,
if not applicable)
- Ambient Temperature : -10 ~ 40°C
- Altitude : ≤ 1000m
- Pressure : 750mmHg
- Relative Humidity : ≤ 80%
- The place shall be well-ventilated without the dust, sand,
vibration, contaminants, and etc.
* Recommended Items
- Spare parts for generators : AVR, ECU (GCU),
ABC (battery charger), GAC, Fuse & relays, and etc.
- Consumables (for 2000 ~ 5000 hrs.)
- Installation materials (for indoor type)
- Outdoor/Soundproof type (If without a generator room)
- ATS to be purchased for emergency standby
- Prepare for a fuel storage tank (Required to purchase
if the quality of fuel is not good)
- Coolant : Use purified water and anti-freeze solutions
(Limewater not allowed)
FEATURES OF GENERATOR SET
1. MCB + TERMINAL BOX
* Arranged on the right side by default to take out load lines
* Possible to choose the sides, either left or right, based on the direction
* Designed for easy handling, maintenance, and repairs
6. ALTERNATOR
Alternator was designed to be simple and robust. Components are easily accessed for the routine maintenance, repair, and replacement.
The heavy-duty alternator complies with NEMA, IEE, and ANSI Standard for temperature rise.
DIESEL ENGINE GENERATOR SET
DAEHAN GENERATOR will offer the best products based on the rich experiences and the accumulated technical skills.
Please refer to the following data for each generator type based on the locations and usages.

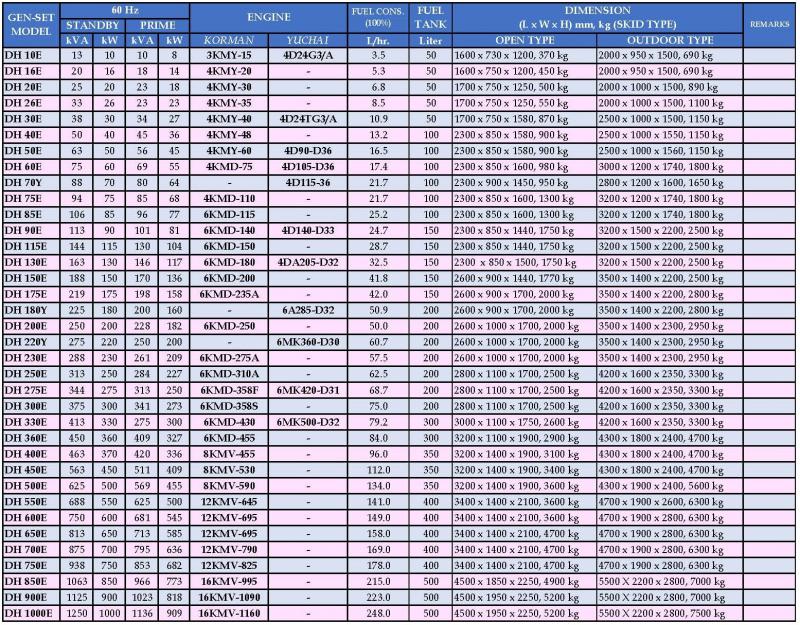

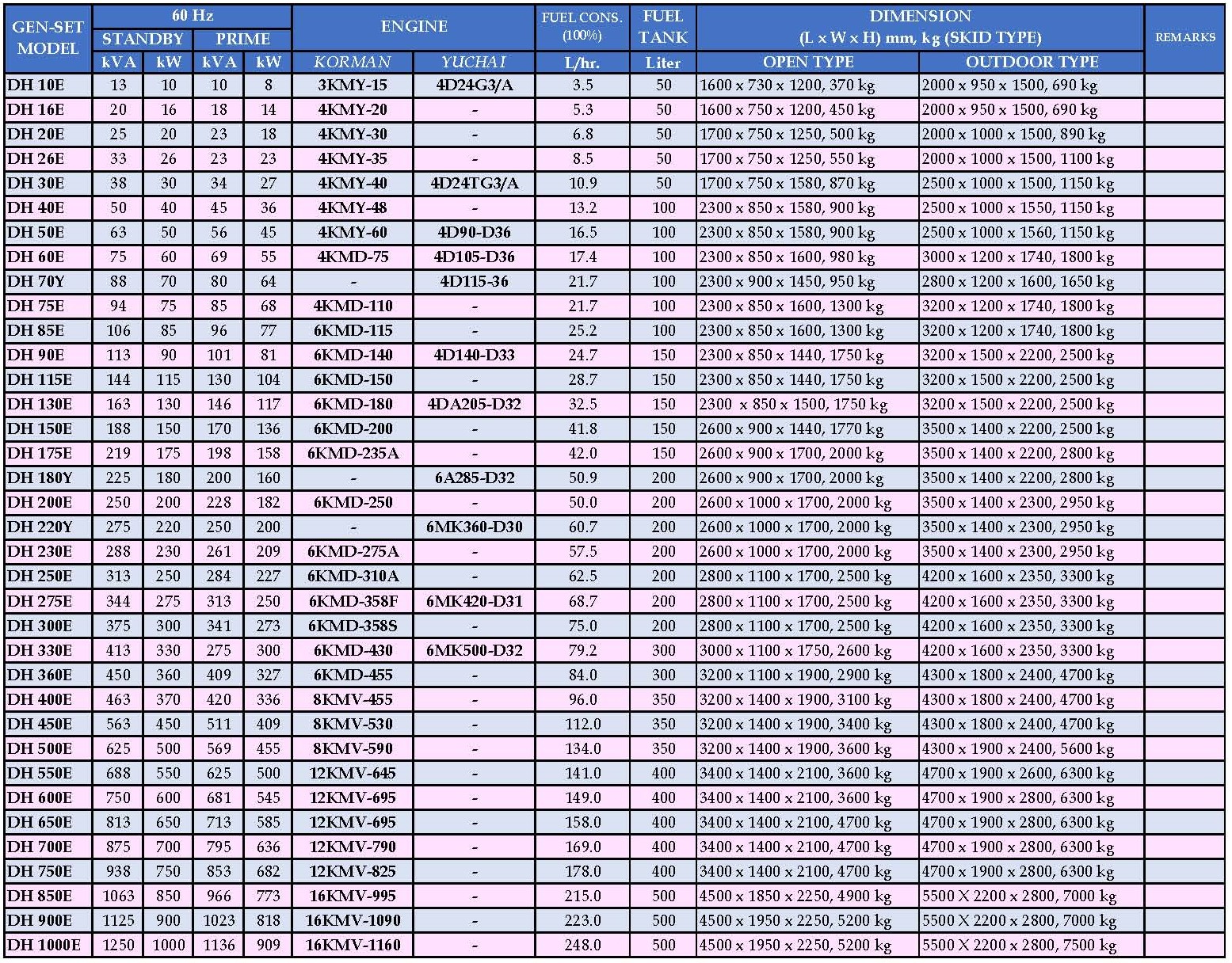

KORMAN / ENVUS / KGEN Diesel Engine Gen-set Series
( 10 ~ 1000kW )
*Specifications are subject to change without prior notice for improving performance of products.

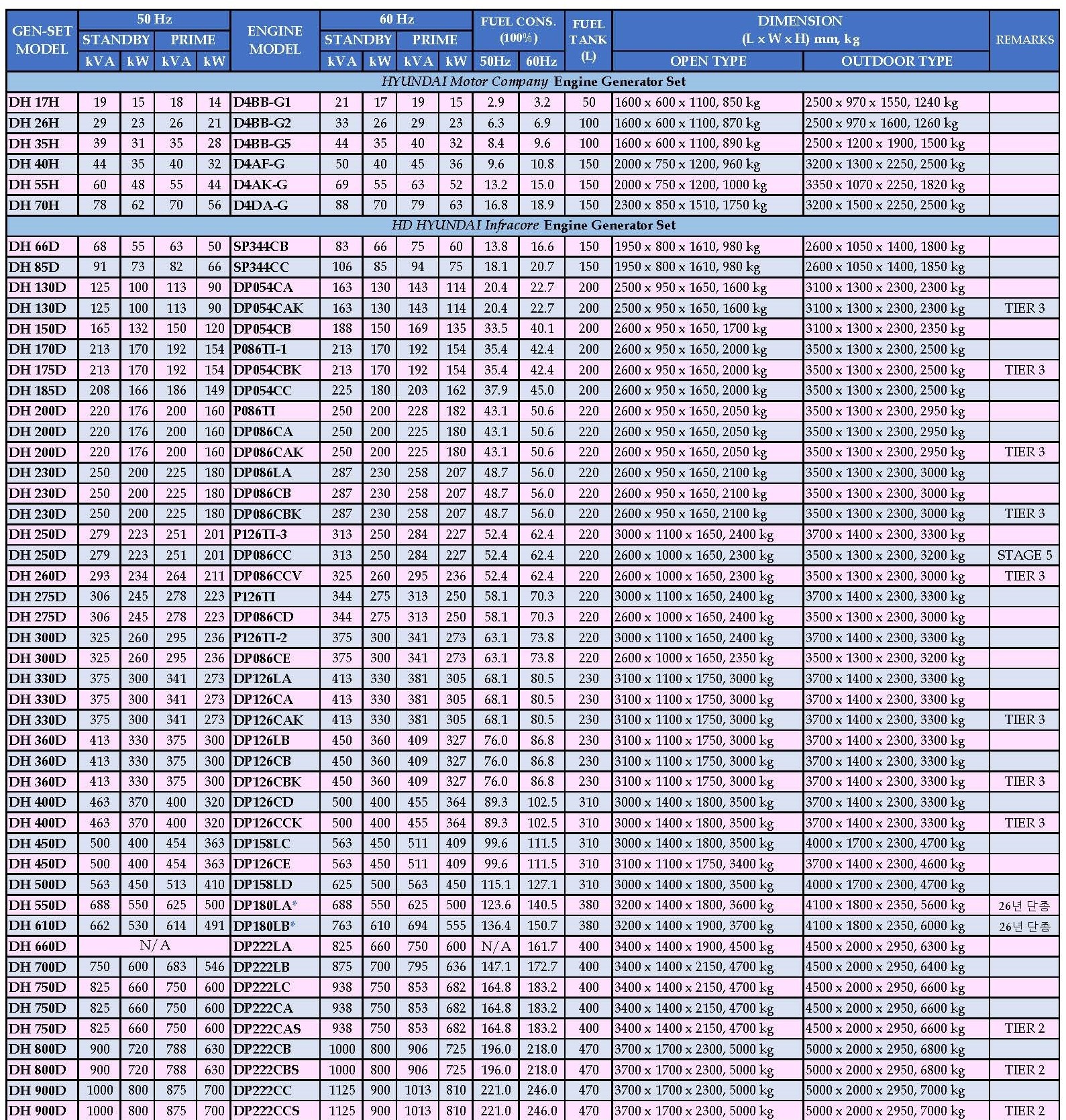

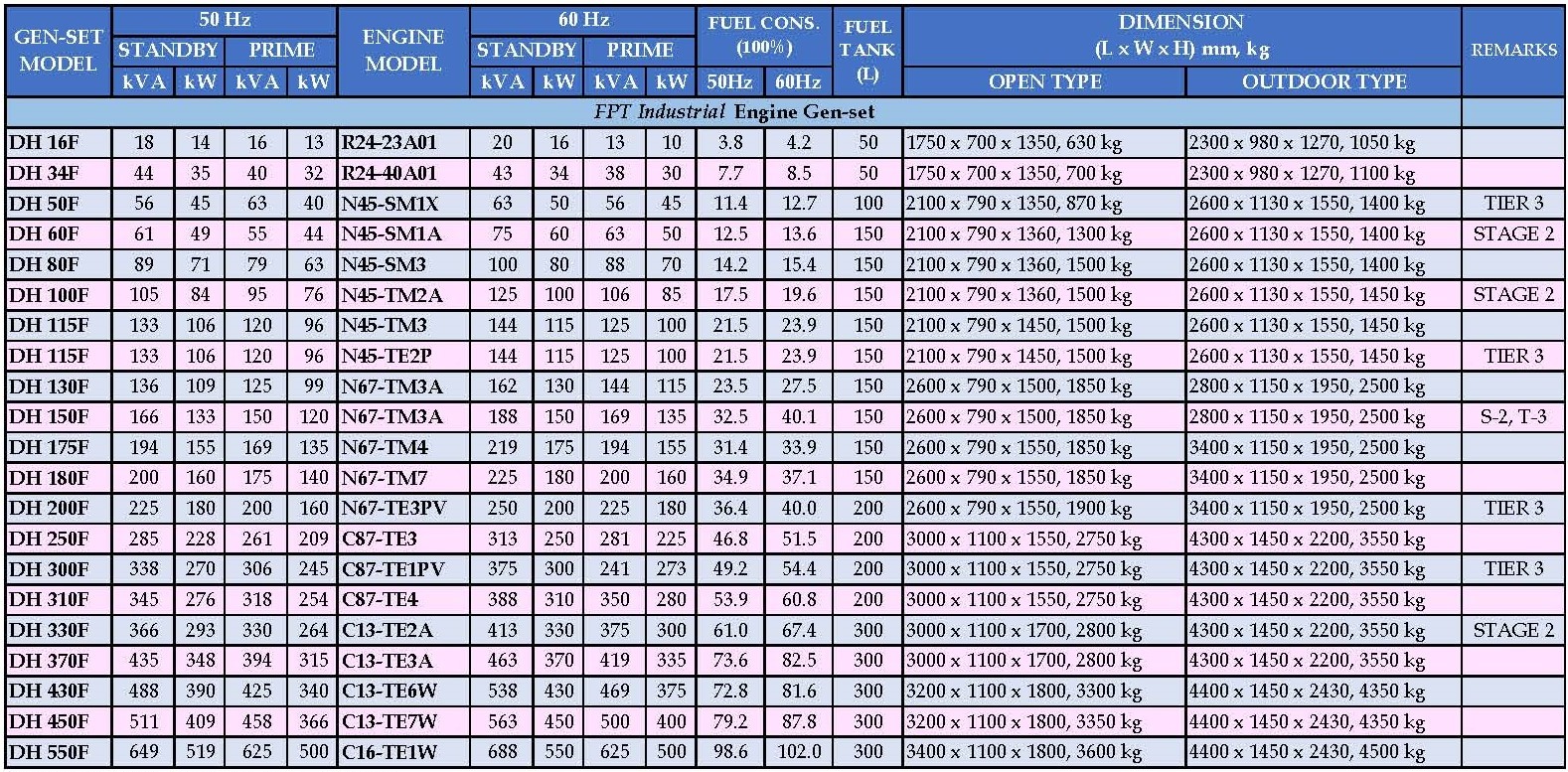

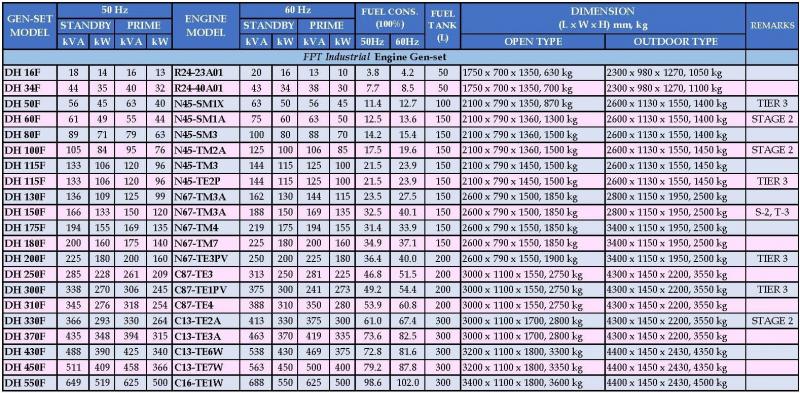

HYUNDAI / DOOSAN / BAUDOUIN / FPT Diesel Engine Gen-set Series
( 17 ~ 2500 kW)
* Model: H - Hyundai / D - DOOSAN Infracore (DAEWOO) / B - BAUDOUIN / F - FPT (ITALY) Engines
* Specifications are subject to change without prior notice for improving product quality.

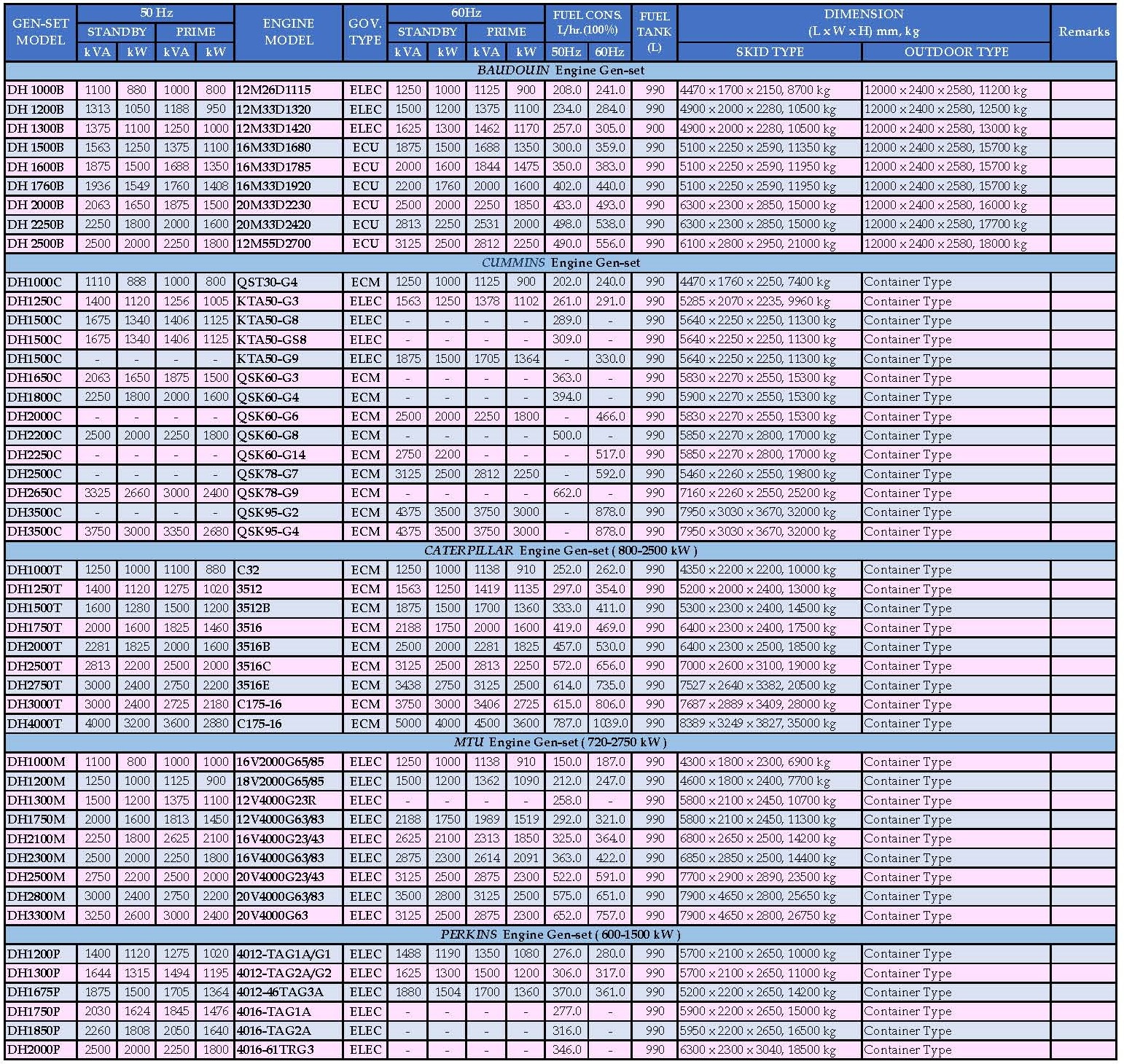

GLOBAL ENGINE BRAND Gen-set Series
( 800 ~ 3000 kW )
* MODEL : C - CUMMINS / M - MTU / P - PERKINS / T - CATERPILLAR / S - SCANIA Engine
* Specifications are subject to change without prior notice for improving performance of products.
PARALLEL OPERATION ( 1 ~ 10 mW )
* Possible to add quantity of gen-sets based on a capacity.
GAS ENGINE GENERATOR SET
HYUNDAI DOOSAN GAS Engine Gen-set Series
( 24 ~ 550 kW )
HYUNDAI DOOSAN BI-FUEL Engine Gen-set Series
( 100 ~ 600 kW )
* FUEL CONSUMPTION RATE : Load (GAS / DIESEL) 15% (10:90), 30% (50:50), 50~100% (70:30)
* Specifications are subject to change without prior notice for improving performance of products.
BI-FUEL
BI-FUEL Device is to be attached to a diesel engine externally to reduce fuel costs by using gas
* USAGE
- For cost reduction from using the gas as a fuel by installing additional device to the existing generator
- Prefer to use both diesel and gas as fuel simultaneously
- Prefer to use the produced gas only, and continue to use diesel for the rest
- Prefer to use gas produced from livestock wastewater, food waste, landfill, and etc., by using the eco-friendly device, and then use diesel for the rest
* Checklist prior to Selection
- Check whether it is possible to use bi-fuel for the existing generator engine
- Confirm the gas supply lines
- Remove detrimental elements for engines, after analyzing gas components (moistures / desulfurization, and etc.)
GENERATOR SET FOR EXPORT
Technical Data for Export
* Frequency : 50 / 60 Hz.
* Voltage : V (Single or 3 phase)
* Check the operation load
1. Normal Load (Motors, pumps, compressors, and etc.):
Check the largest load capacity
2. Select the capacity with the extra 30 to 40% to the power consumption
3. Select either #1 or 2 from the above:
Fuel consumption will be based on the power usage
* Capacity Unit : kVA or kW
- 100kVA X 0.8 = 80 kW
- 80kW ÷ 0.8 = 100 kVA
* Check wheher there is a generator room (for purchasing the installation materials)
*Operating Conditions (A separate inquiry required, if not applicable)
- Ambient Temperature : -10 ~ 40°C
- Altitude : ≤ 1000m
- Pressure : 750mmHg
- Relative Humidity : ≤ 80%
- The place shall be well-ventilated without the dust, sand, vibration,
contaminants, and etc.
* Recommended Items
- Spare parts for generators : AVR, ECU (GCU), ABC (battery charger), GAC,
Fuse & relays, and etc.
- Consumables (for 2000 ~ 5000 hrs.)
- Installation materials (for indoor type)
- Outdoor/Soundproof type (If without a generator room)
- ATS to be purchased for emergency standby
- Prepare for a fuel storage tank
(Required to purchase if the quality of fuel is not good)
- Coolant : Use purified water and anti-freeze solutions
(Limewater not allowed)
CONTROL PANEL FOR GEN-SET
Features of Generator Control Panels
* Remote Control : Dry Signal & Computer Program
- Remote Monitoring : Remote Monitoring by Computer Program
- Modbus Communication (485 Required for the long distance communication mode)
CONTROL PANELS BY TYPE
Control Panels by Type
- MOUNTED vs. SEPARATE (Standing alone) Type
